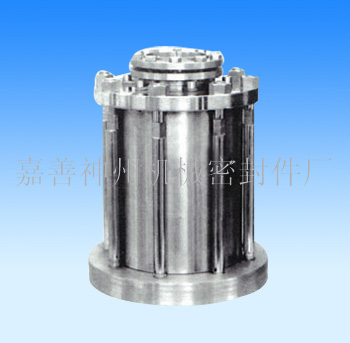

Products Name:Mechanical seal for type 2000 kettle
Products Details:
Structure characteristics:
The container type structure has the advantages of versatility, no drive direction and short axial installation. It is commonly used in conjunction with the hydraulic pump station.
Operating parameters:
Medium: oil, water, alkaline, acid and other general medium; pressure: type 1, type 2, type 4 PN0~0.6MPa 3 PN-0.1~1.6MPa; speed: temperature: -40 = 2m/s; ~180 DEG C; when the temperature exceeds 180 degrees, shall be provided with a cooling water tank, the installation height of L1 or L2 and 60mm
| 1. kettle mouth "O" shape circle, O RING | 8. box "O" ring O RING |
| 2., the static ring "O" ring | 9. skeleton oil seal |
| 3. medium end stationary ring | 10. bearings |
| 4. medium end moving ring | 11. action ring |
| 5. move ring "O" ring | 12. spring |
| 6. sleeve "O" ring | 13. atmospheric end stationary ring |
| 7. spring |
